High-Level Data Parallelism with Apache Spark

  • Anitha Ganesha
  • Ning Gao
  • Mike Kasper
  • Nick Vanderweit

What is Spark?

Apache Spark is designed as an alternative to MapReduce which addresses some of its performance concerns.

It is meant as a general-purpose framework for highly-parallel data analytics.

MapReduce

MapReduce is a computation model popularized by Google for parallel operations on chunked data. It consists primarily of two kinds of tasks:

  • Map, which takes a key-value pair and produces a set of output key-value pairs.
  • Reduce, which takes a key and a set of values for that key and produces a set of output values.

MapReduce nodes share and store data using a distributed filesystem like the Hadoop Distributed Filesystem (HDFS). Every task stores its output on this filesystem.

Limitations of MapReduce

(or why Spark was created)

Because every task involves IO, spinning up many tasks in sequence incurs a large performance penalty.

Spark was designed to allow iterative algorithms to keep their results in memory.

Computation Model

Spark's computation is based around Resilient Distributed Datasets (RDDs).

RDDs are chunks of data which may reside on disk, in memory, or may not have been computed at all yet.

By default, applying an operation like map to a dataset simply adds that map to a chain of computations.

RDDs are represented lazily

RDDs are made by using standard higher-order functions on parallel data structures!

Installation & Profiling

  • Web UI & Monitor Logs
    • Total runtime
    • Application Progress
    • Worker tasks competed
    • Bytes read
  • Execution scripts
    • Node & worker count
    • Memory per worker
    • Cores per worker
    • Task size

Parallel Grep

  • Check installation/performance
  • Compare workers per node
  • Running on 1 - 5 nodes
  • Limited to 20GB file
  • Compared to serial UNIX grep runtime

Grep Speedup

Grep Efficiency

Issues & Possible Solution

  • Limited by single node memory size
  • Scaling to 50 nodes on larger file showed no speedup
  • Possible IO bottleneck
  • Larger file size needed
  • Perform additional computation (PageRank)

Why Page Rank?


  • Good  example of more complex  algorithm
Multiple stages of map and reduce

  • Benefits of spark's in memory caching
Multiple iterations over the same data

Basic IDEA

Give pages scores based on links to them
  • links from many pages -> high rank
  • links from a high rank page  ->high rank

Algorithm

  1. Start each page at a rank of 1
  2. On each iteration, have page p contribute
    (rank)_p/|(neighbors)_p
    to its neighbors
  3. Set each page’s rank to 0.15 + 0.85 * contribs.

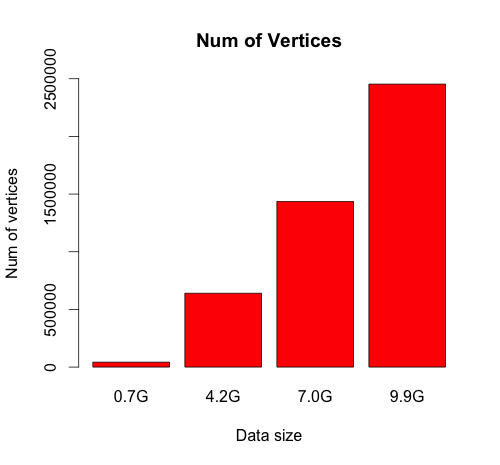

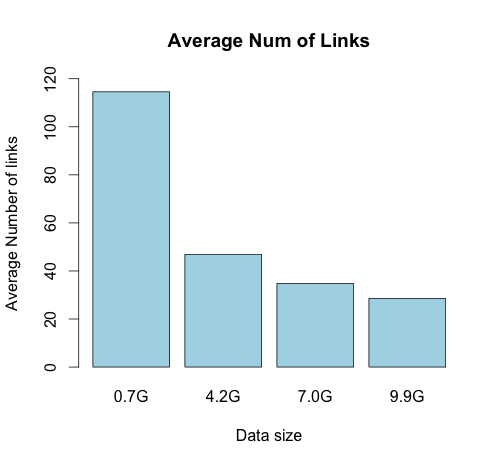

Dataset

  • source: DBPedia(Wikipedia Dump)
  • size:  25GB. But successful to run only on 10GB.
  • data set format:
    •  Page URL        Property         Link URL
  • Each page is a vertex of a graph.
  • Each link to a neighboring vertex is an edge of the vertex.


What is Bagel

  • Spark implementation of Google's graph processing framework called Pregel.
  • Programming model:

    • Operates on distributed data of (K, V) pairs,  where  K is a vertex id and V is value of the vertex and associated  weights.

Simple versus bagel

  • old IMPLEMENTATION of  graph algorithm.

Scala Implementation

Simple:

Analysis on janus

  1. Scalability test
  2. In-memory RDD test
  3. Insufficient memory test
  4. bagel versus simple
  5. Data processing skew
  6. Three trials

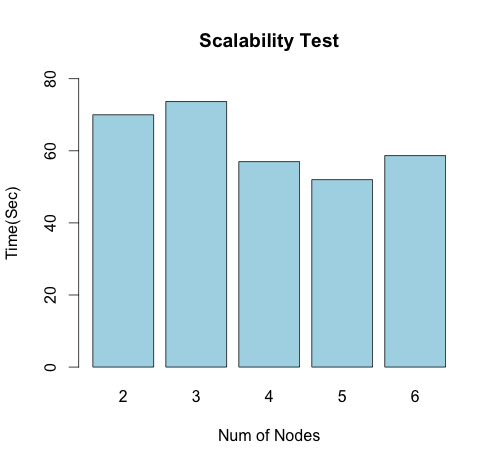

1.Scalability test

Datasize: 5m(700MB)

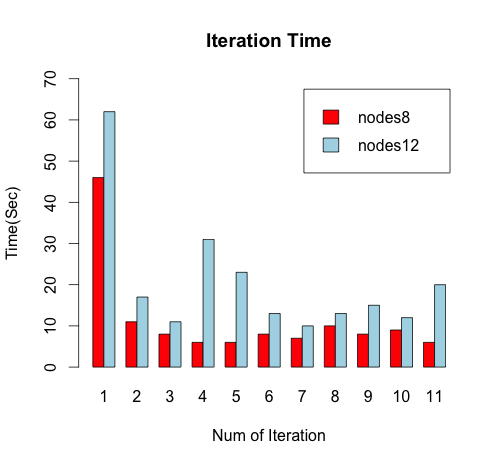

2. IN MEMORY RDD TEST

Dataset: 50m(7GB)
Nodes Used: 12, 8(12cores each)




4~5 times faster in later
iterations

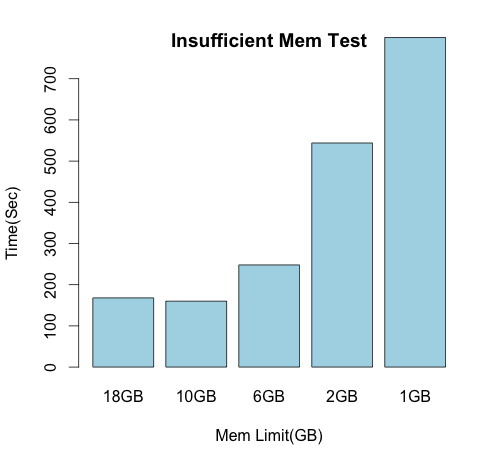

3. INSUFFICIENT MEMORY TEST

Dataset: 30m(4.2GB)
Nodes Used: 4(12cores each)


Consumes  8.8GB/node

Mem only when 18, 10GB
Disk used since 6GB

4. BAGEL VERSUS SIMPLE TEST

Dataset: 30m(4.2GB)
Nodes Used: 4(12cores each)

                  Bagel                 Simple
mem contrast: 8.8GB/node   700MB/node
time contrast:           168sec     82sec

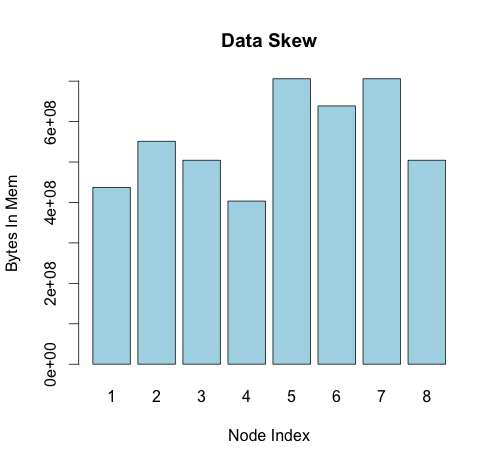

5. DATA SKEW TEST

Dataset: 30m(4.2GB)
Nodes Used: 8(12cores each)

CONCLUSION

  • Installing Spark on Janus turned out to be the easy part.
  • Issues with profiling (or lack thereof).
  • Getting good utilization still A Hard Problem.
  • Need more work on results.
